Timing fraise mowing for establishing perennial ryegrass

Researchers compared the impact of cultivation techniques including fraise mowing, verticutting and scalping.


Redexim Turf-Stripper Model 1200

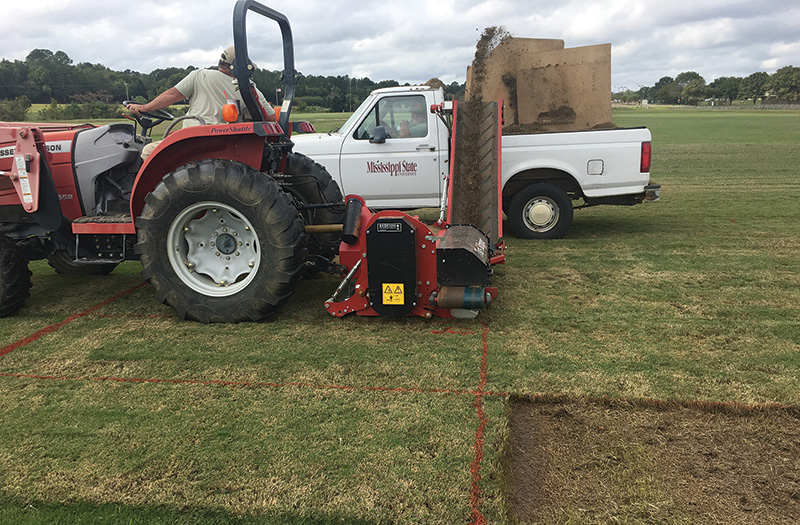

Redexim Turf-Stripper Model 1200 removing bermudagrass and disrupting the soil surface before perennial ryegrass overseeding. Photos by Matthew Carpenter

Overseeding bermudagrass (Cynodon dactylon L.) with perennial ryegrass (Lolium perenne L.) is often performed to provide green cover of dormant warm-season grasses in the winter (13). Typical timings in the Southeast coincide with the onset of winter dormancy in bermudagrass spurred by cooler temperatures and shorter day length in the fall (6, 16). When fall overseeding is performed too early, juvenile perennial ryegrass must compete with actively growing bermudagrass for sunlight, water, nutrients and soil space (23). Cultivation prior to seeding may aid in reducing bermudagrass competition. Scalping, or lowering the mowing height, can stunt bermudagrass growth prior to overseeding and improve seed-soil contact and may be the most practical and cost-effective approach for turfgrass managers on a low budget (1, 6, 12). Scalping turns the bermudagrass unsightly and brown until perennial ryegrass germinates and establishes (11). Surface disruption through vertical mowing (verticutting) can also reduce competition from bermudagrass and remove thatch, which aids in perennial ryegrass establishment (4, 17).

Fraise mowing (also spelled fraze mowing) is a cultivation method aimed at removal of unwanted grass, weeds, thatch or surface aberrations for a more consistent turfgrass playing surface (17; Redexim Turf-Stripper Model 1200 user manual and parts book). Cultivation via fraise mowing is performed by a set of tines or blades perpendicularly attached to a rotating spindle parallel to the soil surface. Thatch, soil and vegetative material are excavated by the spinning apparatus and propelled onto a conveyer for disposal. Depending upon depth of excavation, the action of fraise mowing may result in as little as scalped turfgrass (shallow) or barren soil (deep) (3, 17). Fraise mowing before ryegrass overseeding may remove actively growing bermudagrass and accompanying thatch, thus reducing competition for establishing seed (17, 23).

Bermudagrass thrives in warmer temperatures with an optimum air temperature for shoot growth of 81 to 95 F (27-35 C), and optimum soil temperature for root growth from 75 to 84 F (24-29 C) (2, 26). Conversely, the optimum air temperature for ryegrass shoot growth is 59 to 75 F (15-24 C), and the optimum soil temperature for root growth is 50 to 64 F (10-18 C) (2, 26). These temperatures are consistent with fall and spring temperatures in the southeastern U.S. Amid the average fall temperatures being between 52 to 75 F (11-24 C) and ryegrass competition, bermudagrass struggles to grow (18, 25). The average first frost in Starkville, Miss., occurs between Nov. 1 and Nov. 10 (18). Perennial ryegrass needs approximately two to three weeks to establish, making October the best time to overseed warm-season grasses in the southern U.S. (9). Timing greatly affects the performance of the perennial ryegrass establishment with any overseeding method (9).

Redexim Turf-Stripper Model 1200 digging rotors and conveyor belt
Inside the Redexim Turf-Stripper Model 1200 with the 90-degree digging rotors and conveyor belt.

Although aggressive fraise mowing may improve perennial ryegrass establishment, an athletic field or golf course may not be attractive or playable for a period of time due to the potentially destructive process. This recovery period sets deeper fraise mowing apart from other methods, because most other methods leave some green cover after treatment and require minimal or no cessation of field use. Munshaw et al. performed a study (17) suggesting untreated control and verticut treatments, both of which leave green color, exhibited a better and more consistent green perennial ryegrass cover than fraise-mown treatments. Nevertheless, fraise mowing is being used by many turfgrass managers as site preparation for overseeding (14).

Fraise mowing may be an effective method for perennial ryegrass overseeding, and timing of the practice may directly impact the effectiveness of perennial ryegrass establishment. Therefore, research was conducted to compare cultivation methods prior to overseeding and to assess how fall timing affects perennial ryegrass establishment.

Figure 1

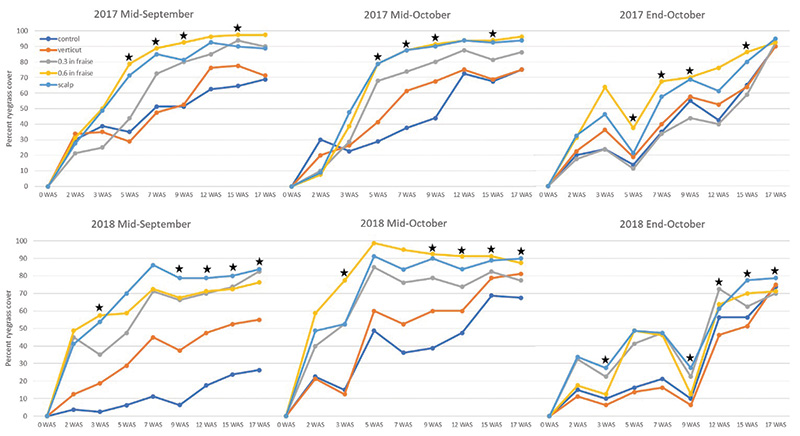

Figure 1. Effect of cultivation method and timing on establishment of perennial ryegrass on overseeded bermudagrass according to visual percent ryegrass coverage in 2017 and 2018. Significant differences were observed for all weeks in both 2017 and 2018. ★ On rating dates, represent significant interactions between cultivation method and timing according to Fisher’s protected LSD (P < 0.05). 0 = 0% ryegrass cover to 100 = 100% ryegrass cover.

Evaluating cultivation and timing of fall perennial ryegrass overseeding

Research was conducted at the Mississippi State University R.R. Foil Plant Science Research Center in Starkville, Miss., from September 2017 to May 2018 and September 2018 to May 2019. Plots consisted of Tifway hybrid bermudagrass established on a Marietta fine sandy loam (fine-loamy, siliceous, active, Fluvaquentic Eutrudept) with a pH of 6.2 (1:1 soil/water). The experimental design was a split-plot within a randomized complete block design, with timing as the main plot, and mechanical surface cultivation as subplots. Treatments were replicated four times with subplots (4 feet × 10 feet [1.2 meters × 3 meters]) randomized within the main plot (20 feet × 10 feet [6 meters × 3 meters]).

The five subplot cultivations were an untreated control; fraise mowing at 0.3 inches (0.76 centimeters) or 0.6 inches (1.5 centimeters) below the soil surface; vertically mowing in one direction at 1 inch (2.54 centimeters) below the soil surface; and scalping 1 inch above the soil surface. A Redexim Charter House Turf Stripper (1200; St. Louis) (3.9-foot [1.2-meter] width) was used for fraise mowing; a Toro Aerothatch 83 (44830; Bloomington, Minn.) (3.9-foot width) was used for vertical mowing; and an Exmark 52 Lazer Z X-Series Zero-Turn Mower (LZX27KC526; Beatrice, Neb.) (4.3-foot [1.3-meter] width) was used for scalping. Treatments were performed on Sept. 21, Oct. 12 and Oct. 31, 2017. In 2018, treatments were performed on Sept. 18, Oct. 9 and Oct. 30.

Immediately after treatment, experiments were overseeded at a pure live seed rate of 435 pounds per acre (487.5 kilograms per hectare) with Ph.D. perennial ryegrass blend (The Hogan Co.; Springfield, Tenn.) with an Andersons Scotts Accupro Drop Spreader (SSD; Maumee, Ohio) (3-foot [0.91-meter] width). Experiments were irrigated enough to prevent drought stress. Experiments were fertilized every two weeks with urea (46% nitrogen-0% phosphorus-0% potassium) at a rate of 22 pounds nitrogen per acre (24.7 kilograms per hectare) beginning seven days after seeding (Woods Farm Supply Inc.; Byhalia, Miss.). Grass was mown once a week with a Craftsman 4.5-hp rotary lawn mower at a height of 2 inches (5 centimeters) (917.385321; Hoffman Estates, Ill.) (2-foot [0.61-meter] width).

Table 1

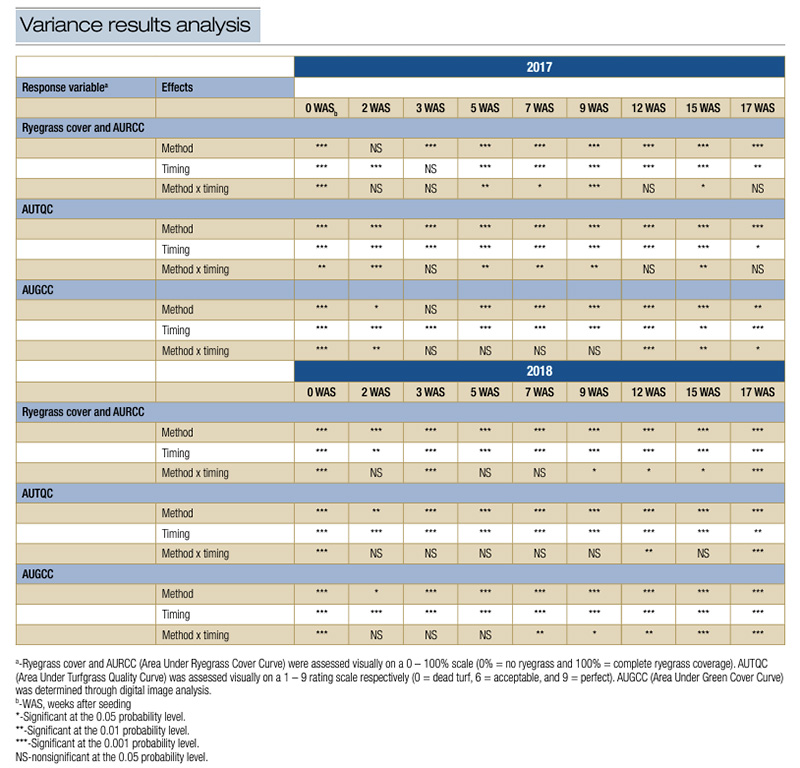

Table 1. Analysis of variance results for both main effects and interactions between the two summarized for each response variable in 2017 and 2018.

Assessments were conducted weekly for three weeks after the treatment, then bi-weekly throughout the course of the experiment. Visual percent perennial ryegrass cover (RC) was assessed on a scale of 0% to 100%, with 0 = no ryegrass cover and 100 = complete ryegrass cover. Visual turfgrass quality (TQ) was assessed on a 1-to-9 scale, with 1 being dead or dormant grass with a straw brown color and 9 being uniform, dense, dark-green turfgrass (15). Percent green cover (GC) was evaluated using digital image analysis similar to Karcher and Richardson (8) and Richardson et al. (19). Images were taken in a 3.3-square-foot (0.3-square-meter) light box containing four 100-watt-equivalent natural daylight compact fluorescent light bulbs (Sylvania; Cleveland). Images were captured with a 10-megapixel Canon digital camera (Canon PowerShot G12; Melville, N.Y.) that was white-balanced with the following settings: f/2.8 aperture, 1/25 second shutter speed, and ISO 100. Percent green cover in images was determined using the TurfAnalyzer software program (TurfAnalyzer, http://turfanalyzer.com) (7).

All data were subject to analysis of variance (version 9.4, SAS Institute, Cary, N.C.) with means separated using Fisher’s Protected LSD (α=0.05). Data were analyzed to diagnose and make inferences from linear models. Response variables differed due to cultivation methods and timings. Significant year-by-treatment interactions were observed for all response variables; therefore, data were analyzed separately by year. This is potentially due to differences in environmental conditions, including growing degree days (base 32 F/0 C), which were greater 17 weeks after seeding (WAS) in 2018 (3,859) compared to 2017 (2,936).

The overall effect of all measurements was evaluated through the calculation of area under the curve. The area under the curve was calculated from 0 to 17 WAS with the formula:

AUC = ∑[(yi + yi + 1)/2](ti+1 – ti)

where i + 1,2,3, …, n – 1, yi is the measurement, and ti is the time at the ith rating (20).

Table 1
Table 1. Analysis of variance results for both main effects and interactions between the two summarized for each response variable in 2017 and 2018.

Effect of cultivation and timing on perennial ryegrass establishment

Cultivation method and timing influenced ryegrass cover (RC) in both years (Figure 1 and Table 1). In 2017, at 5 WAS, 0.6-inch fraise mowing and scalping in both mid-September and mid-October (RC > 71%), and 0.3-inch fraise mowing (RC = 68%) in mid-October led to higher percent RC than all other treatments.

Fraise mowing at 0.6 inches and scalping in mid-September and mid-October led to consistently high RC from 5 to 17 WAS in 2017. Verticut and noncultivated plots both had a RC of less than 42% at 5 WAS for all timings. In 2018, at 3 WAS, 0.6-inch fraise mowing in mid-October led to the highest RC among all other treatments (RC = 78%). Fraise mowing at 0.6 inches and seeded in mid-October led to higher RC than both fraise mowing depths seeded in mid-September at 9 and 15 WAS in 2018 (P = 0.0276; P = 0.0433).

In 2017, plots fraise mowed at 0.6 inches and scalped had higher Area Under Ryegrass Cover Curve (AURCC) values than other cultivation methods and noncultivated plots (AURCC > 14,625) (Figure 2A and Table 1). Verticut plots did not have a different AURCC value than noncultivated plots. The effect of treatment timing in 2017 did not differ between mid-September and mid-October fraise-mown plots, with both having higher AURCC values than the end-October timing (P < 0.0001) (Figure 2B).

In 2018, scalped plots and 0.6-inch fraise-mown plots seeded in mid-October had higher AURCC values than all plots seeded at end-October and all verticut and noncultivated plots (AURCC > 15,706) (Figure 2C). Scalping was the only cultivation method resulting in a higher AURCC than verticut and noncultivated plots for the end-October timing.

Figure 2

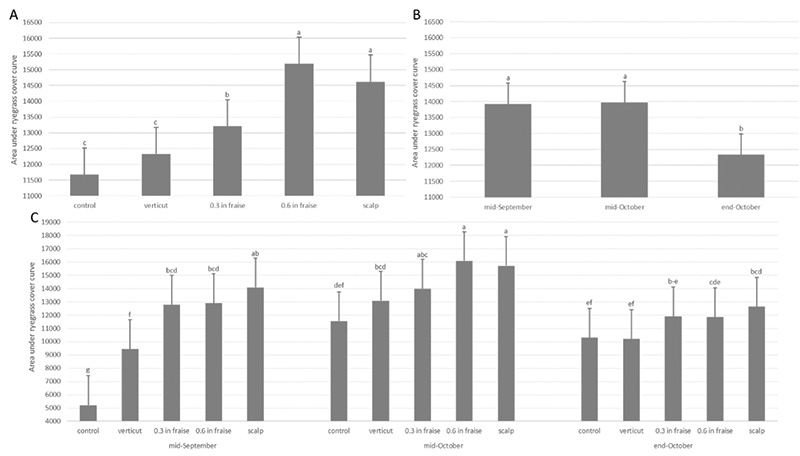

Figure 2 Effect of cultivation method and timing on establishment of perennial ryegrass on overseeded bermudagrass according to the area under ryegrass cover curve (AURCC) in 2017 and 2018. AURCC was calculated as in Shaner and Finney (1977). Columns with the same letter are not significantly different according to Fisher’s protected LSD (P < 0.05). A. AURCC of cultivation methods in 2017 (P < 0.0001) B. AURCC of timings in 2017 (P < 0.0001) C. AURCC of cultivation methods and timings in 2018 (P = 0.0033).

Turfgrass quality and green cover

The Area Under Turfgrass Quality Curve (AUTQC) was calculated for both 2017 and 2018 (Figures 3A, 3B, 3C and Table 1). In 2017, no significant interaction occurred between cultivation method and timing (P = 0.1366) (Figures 3A and 3B). Plots seeded in mid-September and mid-October led to higher AUTQC values than those seeded in late October. Plots fraise mowed at 0.6 inches and scalped had higher AUTQC values than other cultivation methods (AUTQC > 1,236). AUTQC differed due to cultivation method timing interaction in 2018 (P = 0.0350) (Figure 3C). No differences in AUTQC values were observed in plots scalped and fraise mown at either depth in 2018 when seeded at the same timing. When seeded in mid-October 2018, scalping and fraise mowing at 0.6 inches led to higher AUTQC values than when seeded in mid-September or end-October and fraise mowed at either depth (AUTQC > 884).

In 2017 and 2018, at 12 WAS, all cultivation methods seeded in mid-October led to higher percent green cover (GC) assessed with digital image analysis (P = 0.0047; P = 0.0103). In 2017, verticutting in mid-September and mid-October led to lower Area Under Green Cover Curve (AUGCC) values than all other treatments (AUGCC = 11,643; AUGCC = 13,745) (Figure 4A and Table 1). The AUGCC for mid-September and end-October untreated control plots were not significantly different in 2017. In 2017 and 2018, all plots treated in mid-October were among the top statistical group in the AUGCC, except verticutting in 2017 (Figure 4B).

Figure 3

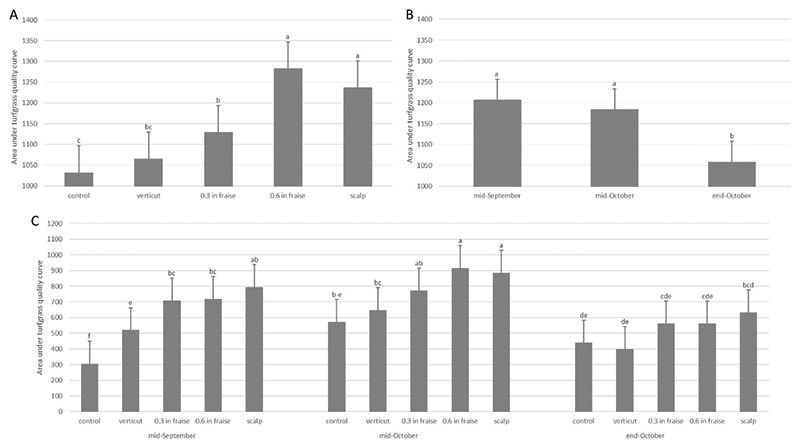

Figure 3 Effect of cultivation method and timing on the area under turfgrass quality curve (AUTQC) in 2017 and 2018. AUTQC was calculated as in Shaner and Finney (1977). Columns with the same letter are not significantly different according to Fisher’s protected LSD (P < 0.05). A. AUTQC of cultivation methods in 2017 (P < 0.0001) B. AUTQC of timings in 2017 (P < 0.0001) C. AUTQC of cultivation methods and timings in 2018 (P = 0.0350).

Summary and conclusion

Fraise mowing may have many desirable outcomes, but like scalping, it causes a visually undesirable and unplayable area until overseeded ryegrass establishes. Overseeding into the bermudagrass canopy without prior cultivation prevents seed-to-soil contact and increases competition for sunlight and other resources. In contrast to a study done by Munshaw et al. (17), in which treatments were fraise mowed at 0.26-, 0.50- and 1.0-inch depths, fraise mowing resulted in better perennial ryegrass establishment than both verticutting and the untreated control. Performed in both Kentucky and Tennessee, they found no significant differences in their study past 3 WAS. Ward et al. (24) found verticutting prior to overseeding was beneficial but only when three or more passes were made, which was not the case in this study. Scalping is often recommended before overseeding to stunt bermudagrass growth (10, 11, 22); however, the amount of reduction in mowing height is unclear between various studies. Kopec and Umeda (9) suggest mowing no more than 25% the standard height when preparing for overseeding. In this study, scalping 50% from 2-inch standard height to 1 inch resulted in rapid ryegrass coverage comparable to aggressive fraise mowing.

Both verticutting and scalping require extensive clean-up of the removed thatch and verdure. A fraise mower provides a conveyer to get this waste into a truck or trailer for disposal, whereas scalping and verticutting require bagging or manual removal from the turfgrass surface. Perennial ryegrass establishment at the deeper fraise mowing of 0.6 inches may have resulted from more uniform removal of unwanted grass, weeds, thatch and light competition, while increasing direct seed-to-soil contact. Longer (11) found that in the more northern location of Fayetteville, Ark., mid-September overseeding performed better than mid-October.

In northeast Mississippi, with a longer fall and warmer temperatures, mid-October provided better ryegrass establishment than seeding in either mid-September or end-October. Overseeding can benefit the dormant bermudagrass by acting as a buffer for winter traffic, which has been found to delay spring green-up by up to a month (21). Provided proper removal of ryegrass is conducted in the spring, fall fraise mowing may benefit bermudagrass overall by stimulating new growth with less thatch when coming out of dormancy.

Seedbed preparation is essential to provide the quickest ryegrass overseeding establishment. In this study, verticutting in one direction at 1 inch below the soil surface did not result in perennial ryegrass establishment comparable to other cultivation methods, and in some seeding timings did not produce better establishment than noncultivated plots. Fraise mowing was effective at removing thatch and senescing bermudagrass. Removal of the senesced bermudagrass and thatch increased seed-to-soil contact, allowed space for ryegrass germination and provided a thatch-free surface for the returning bermudagrass in the spring. Fraise mowing at the shallower 0.3-inch depth was not as effective in establishing ryegrass cover as fraise mowing at 0.6 inches or scalping. Both fraise mowing at 0.6 inches and scalping removed bermudagrass foliage more uniformly than fraise mowing at 0.3 inches.

This study indicates the end of October is too late to seed ryegrass into an existing bermudagrass stand in northeast Mississippi. Fraise mowing at 0.6 inches and scalping prior to seeding in mid-October routinely provided the quickest ryegrass establishment in this trial and are suggested in similar climactic regions.

Figure 4

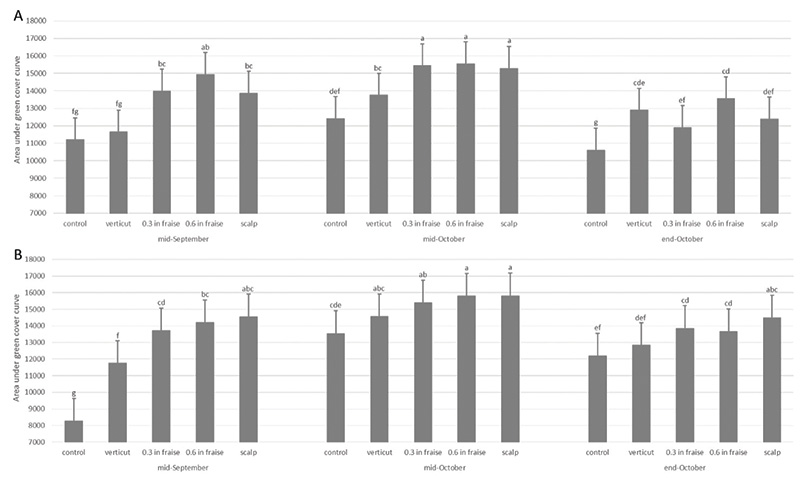

Figure 4 Effect of cultivation method and timing on area under green coverage curve (AUGCC) in 2017 and 2018. Area under green cover curve calculated as in Shaner and Finney (1977). Digital images were taken from each plot every 7 days (Karcher and Richardson, 2003) and analyzed using the Turf Analyzer software program to determine percent green coverage (Karcher et al., 2017). Columns with the same letter are not significantly different according to Fisher’s protected LSD (P < 0.05). A. AUGCC of cultivation methods and timings in 2017 (P = 0.0198) B. AUGCC of cultivation methods and timings in 2018 (P = 0.0007).

The research says

  • Fraise mowing and scalping can reduce competition and stimulate perennial ryegrass germination and establishment.
  • Mid-October is the best timing to perform overseeding treatments with perennial ryegrass in northeast Mississippi.
  • Fraise mowing provides a good seedbed and an improved playing surface once perennial ryegrass is established.
  • Aggressive fraise mowing can result in an undesirable playing surface while perennial ryegrass is establishing.

Literature cited

  1. Aldahir, P., J. McElroy, M. Flessner, J. Baird, S. Magni, N. Grossi, F. Lulli and M. Volterrani. 2015. Cultural and chemical practices for quality improvement of overseeded bermudagrass [Cynodon dactylon (L.) Pers. × C. transvaalensis Burtt-Davy] and annual bluegrass (Poa annua L.) suppression. Journal of Environmental Horticulture 33(1):7-14 (https://doi.org/10.24266/0738-2898-33.1.7).
  2. Beard, J.B. 1973. Turfgrass: science and culture. Prentice Hall, Englewood Cliffs, N.J.
  3. Brosnan, J.T., G.K. Breeden, A.J. Patton and Q.D. 2018. Reducing Poa annua in zoysiagrass fairways. Golf Course Management 86(11):79 (https://gcmonline.com/course/environment/news/poa-annua-in-zoysiagrass).
  4. Duble, R.L. 1978. Overseeding bermudagrass turf. Southern Golf 9(4):20-23.
  5. Förster, L., J. Grant, T. Michel, C. Ng and S. Barth. 2018. Growth under cold conditions in a wide perennial ryegrass panel is under tight physiological control. PeerJ 6:5520 (https://doi.org/10.7717/peerj.5520).
  6. Green, R., G. Klein, F. Merino and V. Gibeault. 2004. Influence of fall-applied treatments on spring transition of an overseeded bermudagrass green. HortScience 39(2):424-428 (https://doi.org/10.21273/HORTSCI.39.3.611).
  7. Karcher, D.E., C.J. Purcell, M.D. Richardson, L.C. Purcell and K.W. Hignight. 2017. A new Java program to rapidly quantify several turfgrass parameters from digital images. ACS Presentation, 267-3.
  8. Karcher, D.E., and M.D. Richardson. 2003. Quantifying turfgrass color using digital image analysis. Crop Science 43(3):943-951 (https://doi.org/10.2135/cropsci2003.9430).
  9. Kopec, D., and K. Umeda. 2015. Overseeding winter grasses into bermudagrass turf. University of Arizona.
  10. Landry, G. 1993. Success with overseeding warm-season grasses. SEED 1(800):12-14.
  11. Longer, E. 1998. Overseeding warm-season lawns with cool-season turfgrass species. Horticultural Studies 137:72-75.
  12. Maloy, B.M. 2000. Fairway overseeding: Does it make dollars or sense? USGA Green Section Record 38(1):1-5.
  13. McCauley, R.K., G.D. Pinnix and G.L. Miller. 2019. Fraise mowing as a spring transition aid. Crop, Forage & Turfgrass Management 5(1):1-5 (https://doi.org/10.2134/cftm2019.04.0025).
  14. Minnick, J. 2018. Turf manager comments on fraze mowing. SportsTurf 34(4):30-31.
  15. Morris, K.N., and R.C. Shearman. 2014. NTEP turfgrass evaluation guidelines. National Turfgrass Evaluation Program (ntep.org).
  16. Munshaw, G., C. Bigelow, M. Goatley and B. Fresenburg. 2017. Optimizing bermudagrass athletic field winter survival in the transition zone. Virginia Tech Cooperative Extension. (http://hdl.handle.net/10919/84116).
  17. Munshaw, G.C., K.H. Dickson, K.L. Cropper and J.C. Sorochan. 2017. The effect of fraze mowing on overseed establishment in Cynodon dactylon turf. International Turfgrass Society Research Journal 13(1):380-382 (https://doi.org/10.2134/itsrj2016.10.0844).
  18. NWS. 2023. State University, Miss. NOAA online weather data. National Weather Service Forecast Office.
  19. Richardson, M.D., D.E. Karcher and L.C. Purcell. 2001. Quantifying turfgrass cover using digital image analysis. Crop Science 41(6):1884-1888 (https://doi.org/10.2135/cropsci2001.1884).
  20. Shaner, G., and R. Finney. 1977. The effect of nitrogen fertilization on the expression of slow-mildewing resistance in Knox wheat. Phytopathology 67(8):1051-1056 (https://www.apsnet.org/publications/phytopathology/backissues/Documents/1977Articles/Phyto67n08_1051.PDF).
  21. Stewart, B., C. Nettles Jr., G. Munshaw, H. Philley and W. Wells. 2008. Traffic-ability of dormant bermudagrass. In: 2008 annual meeting abstracts. ASA, CSSA and SSSA, Madison, Wis.
  22. Trappe, J.M., M.D. Richardson and A.J. Patton. 2012. Species selection, pre-plant cultivation, and traffic affect overseeding establishment in bermudagrass turf. Agronomy Journal 104(4):1130-1135 (https://doi.org/10.2134/agronj2011.0407).
  23. Vetter, L. 1980. Renovating lawns through overseeding. Lawn Care Industry 4(5):12-15.
  24. Ward, C.Y., E.L. McWhirter and W.R. Thompson Jr. 1974. Evaluation of cool-season turf species and planting techniques for overseeding bermudagrass golf greens. Proceedings of the Second International Turfgrass Research Conference 61:480-495.
  25. Wharton, S.M. 1999. Overseeded bermudagrass fairway performance and post dormancy transition as influenced by winter overseeding practices and trinexapac-ethyl. Virginia Tech.
  26. Youngner, V.B. 1961. Growth and flowering of zoysia species in response to temperatures, photoperiods, and light intensities. Crop Science 1(2):91-93 (https://doi.org/10.2135/cropsci1961.0011183X000100020003x).

Matthew C. Carpenter (carpenmc@purdue.edu) is a research associate in turfgrass pathology, and Gerald L. Miller is an assistant professor of turfgrass pathology, both at Purdue University, West Lafayette, Ind.; Jay McCurdy is an associate professor of agronomy — turfgrass, and Barry R. Stewart is a professor, both at Mississippi State University.
